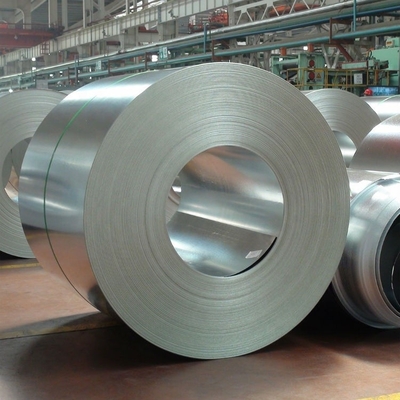

Roofing 400g/M2 Hot Dipped GI Sheet Coil G550 G450 Dx51dUsed for exterior walls, interior and exterior lining, handrails
| Place of Origin | CHINA |
|---|---|
| Brand Name | Duohe |
| Certification | ISO,SGS,BV,etc. |
| Model Number | G550 G450 Dx51d |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hot Dipped Zinc Coated Galvanized Steel Coil | Standard | ASTM, JIS, GB, AISI, DIN, BS |
|---|---|---|---|
| Grade | G550 G450 Dx51d | Thickness | 0.12-4mm |
| Width | 600-1500mm | Zinc Coating | 30-400GSM, As Your Request |
| Tolerance | ±1 | Application | Roofing, Exterior And Interior Wall |
| High Light | Roofing 400g/m2 GI Sheet Coil,Roofing hot dipped gi G550 G450 Dx51d,Roofing 400g/m2 hot dipped gi |
||
Product Description
TISCO Hot Dipped Gi Sheet Coil G550 G450 Dx51d Galvanised Roofing Sheets Zinc Coating 400g/M2
Is hot dipped galvanized better?
The thicker zinc coating produced by hot dip galvanization offers improved rust and corrosion protection versus
pre-galvanization. This is an important quality in a temporary fence panel, as it is most often used outdoors and
exposed to snow, ice, rain, and salt.
How long do galvanised roofing sheets last?
Metal roofing sheets have a considerably long lifespan and, although manufacturers will often state an expected
lifespan of 10 – 15 years, people more than often find that they last much, much, longer with some people reporting
their sheets to still be in good working order after 60 years!
What is purpose of zinc coating on GI sheet?
Because of the sacrificial nature of the zinc, the coating provides corrosion protection for areas of exposed steel
surfaces, such as cutting edges and areas where coating has damaged (scratches, impacts, etc.).
|
Name
|
Gi Coils Hot Dipped SGCC Dx51d Metal Zinc Galvanised Sheet Roofing Materials 275GSM 2mm Thick Z150 Z120 Z80 Regular Spangle Zinc Coated Galvanized Steel Coil
|
|
Grade
|
DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z
|
|
Width
|
600-1500mm
|
|
Thickness
|
0.12-4mm
|
|
Zinc coating
|
30-400g/m2
|
|
Surface treatment
|
chromated / oiled/slightly oiled/ dry
|
|
Hardness
|
soft, full hard, half hard
|
|
Spangle
|
zero spangle / minimized spangle / regular spangle/ big spangle
|
|
ID coil
|
508mm or 610mm
|
|
Coil weight
|
2-8 MT per coil. According to the customer's requirements
|
|
Package:
|
Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
|
|
Application:
|
Industrial panels, roofing and siding for painting
|
|
Chemical Composition
|
||||||
|
GRADE
|
C
|
Si
|
Mn
|
P
|
S
|
Ti
|
|
SGCC/DX51D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
DX52D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
SGCD/DX53D+Z
|
≤0.10
|
≤0.30
|
≤0.50
|
≤0.05
|
≤0.030
|
≤0.020
|
|
SGCE/DX54D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
DX56D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
Structural
|
≤0.20
|
≤0.60
|
≤1.70
|
≤0.10
|
≤0.045
|
|
|
Mechanical Properties
|
||||||
|
GRADE
|
Yield Strength MPa
|
Tensile Strength MPa
|
Elongation %
|
|||
|
SGCC(DX51D+Z)
|
≥205
|
≥270
|
-
|
|||
|
SGCD(DX53D+Z)
|
-
|
≥270
|
38
|
|||
|
SGCE(DX54D+Z)
|
-
|
≥270
|
40
|
|||
|
DX56D+Z
|
-
|
≥270
|
42
|
|||
FAQ
Q1: Are you a factory or trading company?
A1: We are a Chinese manufacture of steel pipes with both factories and trading companies.
Q2.How can you ensure the quality of your product?
A2.All products have to go through three checks in the whole manufacturing process,it includes production,cutting sheets and the packing.
Q3.What is your delivery time and the supply ability?
A3.The delivery time normally within 15~20working days,we can supply about 15,000tons every month.
Q4.What kind of equipment in your factory?
A4.Our factory have advanced five-eighth roller rolling,cold rolling production equipment on the roll,advanced processing and testing equipment,which makes our product better quality with efficiency.
Q5.About the complaint,quality problem,etc aftersales service,how do you handle it?
A5.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
