3mm 5mm G275 Galvanized GI Sheet Coil Zinc Coating Plate Jis G3321
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO |
| Certification | ISO,SGS |
| Model Number | DX51D/DX52D |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | DX51D Galvanized Steel Plate | Standard | AISI, JIS,EN |
|---|---|---|---|
| Grade | SGLCD/SGLC490/SGLC570 | Thickness | 0.12-2mm |
| Zn Coating | 30-600g/m2 | Surface Processing | Chromed / Oiled/slightly Oiled/ Dry |
| Technic | Cold Rolled | Finish | Galvanized |
| Tolerance | ±1 | Application | Pre-engineered Steel Buildings, Industrial And Commercial Roofing And Cladding |
| High Light | GI Sheet Coil Zinc Coating,3mm GI Sheet Coil,Jis G3321 GI Sheet Coil |
||

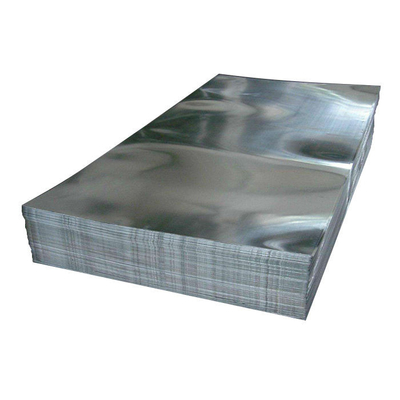

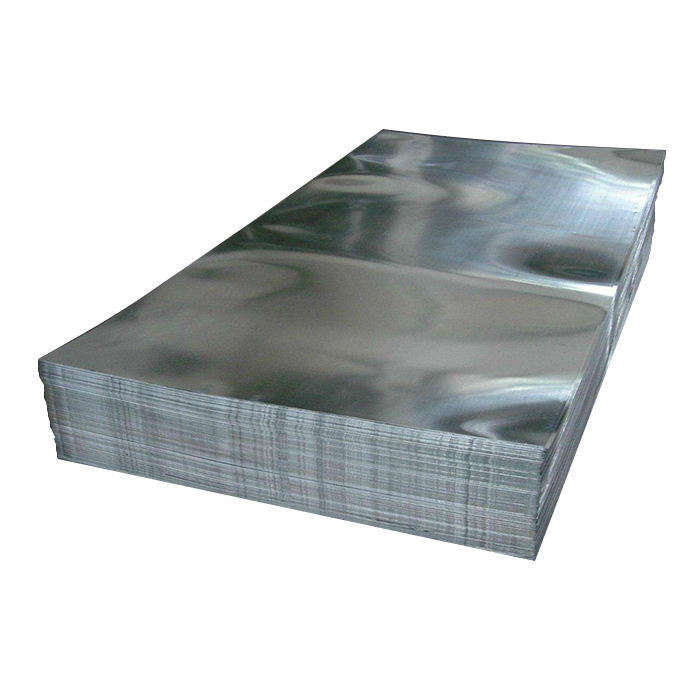

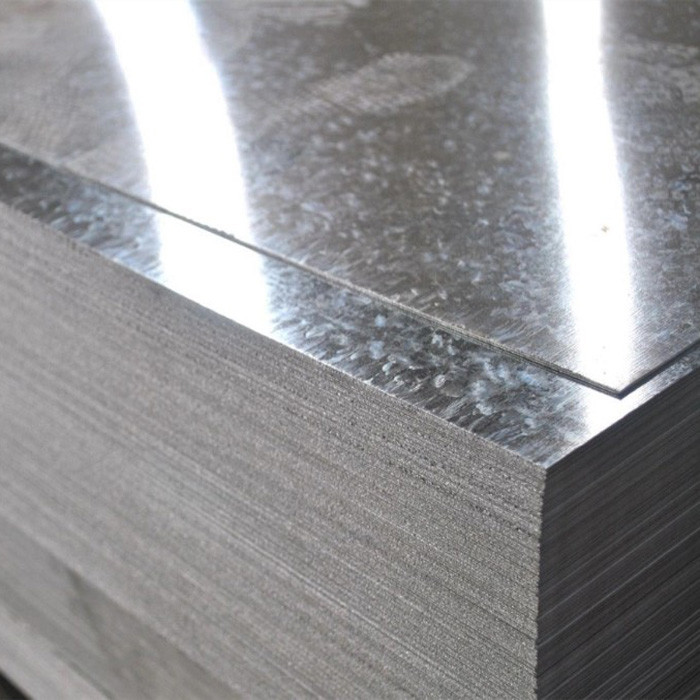

Product Description
1mm 3mm 5mm G80 G90 G275 Zinc Coating Galvanized Plate Jis G3321 GI Sheet Coil Galvanized Sheet Sheet coil
How thick is G90 galvanized coating?
The designation G90 is simply a coating thickness of 0.9 oz/ft2 as specified in A653 and is equivalent to 0.45
oz/ft2 or about 0.76 mils per side (it is important to state per side because the oz/ft2 method takes into
consideration the coating thickness on both sides of the steel, such as in the case of sheet steel).
What is the difference between G80 and G90 galvanized steel?
The numbers included in G80 and G90 galvanizing signify the quantity of Zinc in the coating on the steel
sheet. This means that G80 has a designated coating of 0.80 oz/square foot while G90 has a designated
coating of 0.90 oz/square foot. This is the total weight of Zinc on both sides of the sheet.
What is the galvanizing standard?
Galvanizing standards. Hot dip galvanizing is a relatively simple process to specify and is covered by a
single standard EN ISO 1461. Galvanizers Association can provide detailed advice on compiling your
specifications, as well as reviewing design details to maximise the benefits of galvanizing your steel.
Product Description
Galvanized sheet is defined as a carbon steel sheet coated with zinc on both sides.A zinc coating is one
of the most effective and economical methods of protecting bare steel from a corroding environment.
galvanized steel prices/ hot dip galvanized steel/zinc plate
Galvanized sheet is defined as a carbon steel sheet coated with zinc on both sides. A zinc coating is one
of the most effective and economical methods of protecting bare steel from a corroding environment. The
zinc not only serves as a barrier between the steel and the environment, it will sacrifice itself to protect the
underlying steel sheet.
|
Product name |
hot dipped galvanized steel sheet |
|
Standard |
JIS G3321 / ASTM A792M / EN10215 |
|
Grade |
SGLCC/SGLCD/SGLC490/SGLC570/ CS TypeA,B,C/DS/255/DX51D/DX52D |
|
Thickness |
0.12-2mm |
|
Width |
according to customer's requirement |
|
|
(usual size:1000mm,1200mm,1250mm,1500mm) |
|
Coil ID |
508mm, 610mm |
|
Zinc weight |
30-600g/m2 |
|
Coil weight |
5-8tons |
|
Spangle |
Mini/regular/big/zero spangle |
|
Delivery time |
Within 30 days after receipt of T/T or L/C |
|
Price |
FOB&CFR&CIF price |
|
Application |
Pre-engineered steel buildings, industrial and commercial roofing and cladding, |
Surface
Application
Packing And Delivery
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage.
Identification labels are tagged according to standard specification or customer's instructions.
Special packing is available as per customer's requirement.
Special packing is available as per customer's requirement.
FAQ
Q1: Are you a factory or trading company?
A1: We are a Chinese manufacture of steel pipes with both factories and trading companies.
Q2.How can you ensure the quality of your product?
A2.All products have to go through three checks in the whole manufacturing process,it includes production,cutting sheets and the packing.
Q3.What is your delivery time and the supply ability?
A3.The delivery time normally within 15~20working days,we can supply about 15,000tons every month.
Q4.What kind of equipment in your factory?
A4.Our factory have advanced five-eighth roller rolling,cold rolling production equipment on the roll,advanced processing and testing equipment,which makes our product better quality with efficiency.
Q5.About the complaint,quality problem,etc aftersales service,how do you handle it?
A5.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
