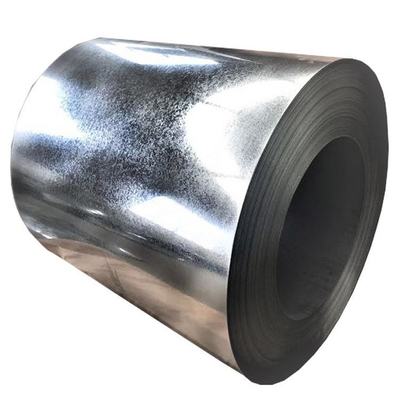

SGCC DX51 Z275 Gi Sheet Coil Strip 22 Gauge Iron Plate 3mm Hot Dipped Carbon
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO |
| Certification | ISO,SGS |
| Model Number | G550 G450 Dx51d |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hot Dipped Zinc Coated Galvanized Steel Coil | Standard | ASTM, JIS, GB, AISI, DIN, BS |
|---|---|---|---|
| Grade | G550 G450 Dx51d | Thickness | 0.12-4mm |
| Width | 600-1500mm | Zinc Coating | 30-400GSM, As Your Request |
| Tolerance | ±1 | Application | Roofing, Exterior And Interior Wall |
| High Light | Hot Dipped Gi Sheet Coil Strip,Z275 Gi Sheet Coil Strip,Gi Sheet Coil Strip 3mm |
||
Product Description
SGCC DX51 z275 Z60 G90 Gi Sheet Coil Strip 3mm hot dipped galvanized carbon steel sheet coil strip 24 22 Gauge GI iron sheet plate
What is SGCC steel?
Image result for sgcc gi steel coil
SGCC steel is a soft forming quality hot dip galvanized steel. SGCC is a material grade and designation
defined in JIS G 3302 standard. JIS G 3302 is a Japanese material standard for hot dip galvanized steels.
What is Z275 coating?
The specifications Z275 and Z600 refer to the zinc coating, measured in grams of zinc or aluminium/zinc per
square metre. This measurement is the total coating mass on both sides of the steel. Corrosion.
Hot dip galvanizing provides much better corrosion resistance than electro galvanization because the zinc coating
is typically 5 to 10 times thicker. For outdoor or caustic applications where corrosion-resistance is required, hot dip
galvanized cable is the clear choice.
What is carbon steel used for?
Also called mild steel, it's commonly used structurally in buildings and bridges, axles, gears, shafts, rails, pipelines
and couplings, cars, fridges and washing machines. High carbon steel has a much better tensile strength, used to
make cutting tools, blades, punches, dies, springs and high-strength wire.
Product description
|
Name
|
Gi Coils Hot Dipped SGCC Dx51d Metal Zinc Galvanised Sheet Roofing Materials 275GSM 2mm Thick Z150 Z120 Z80 Regular Spangle Zinc Coated Galvanized Steel Coil
|
|
Grade
|
DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z
|
|
Width
|
600-1500mm
|
|
Thickness
|
0.12-4mm
|
|
Zinc coating
|
30-400g/m2
|
|
Surface treatment
|
chromated / oiled/slightly oiled/ dry
|
|
Hardness
|
soft, full hard, half hard
|
|
Spangle
|
zero spangle / minimized spangle / regular spangle/ big spangle
|
|
ID coil
|
508mm or 610mm
|
|
Coil weight
|
2-8 MT per coil. According to the customer's requirements
|
|
Package:
|
Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
|
|
Application:
|
Industrial panels, roofing and siding for painting
|
|
Chemical Composition
|
||||||
|
GRADE
|
C
|
Si
|
Mn
|
P
|
S
|
Ti
|
|
SGCC/DX51D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
DX52D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
SGCD/DX53D+Z
|
≤0.10
|
≤0.30
|
≤0.50
|
≤0.05
|
≤0.030
|
≤0.020
|
|
SGCE/DX54D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
DX56D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
Structural
|
≤0.20
|
≤0.60
|
≤1.70
|
≤0.10
|
≤0.045
|
|
|
Mechanical Properties
|
||||||
|
GRADE
|
Yield Strength MPa
|
Tensile Strength MPa
|
Elongation %
|
|||
|
SGCC(DX51D+Z)
|
≥205
|
≥270
|
-
|
|||
|
SGCD(DX53D+Z)
|
-
|
≥270
|
38
|
|||
|
SGCE(DX54D+Z)
|
-
|
≥270
|
40
|
|||
|
DX56D+Z
|
-
|
≥270
|
42
|
|||
FAQ
Q1: Are you a factory or trading company?
A1: We are a Chinese manufacture of steel pipes with both factories and trading companies.
Q2.How can you ensure the quality of your product?
A2.All products have to go through three checks in the whole manufacturing process,it includes production,cutting sheets and the packing.
Q3.What is your delivery time and the supply ability?
A3.The delivery time normally within 15~20working days,we can supply about 15,000tons every month.
Q4.What kind of equipment in your factory?
A4.Our factory have advanced five-eighth roller rolling,cold rolling production equipment on the roll,advanced processing and testing equipment,which makes our product better quality with efficiency.
Q5.About the complaint,quality problem,etc aftersales service,how do you handle it?
A5.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
