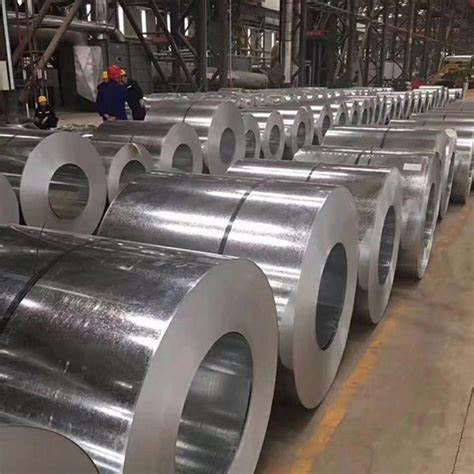

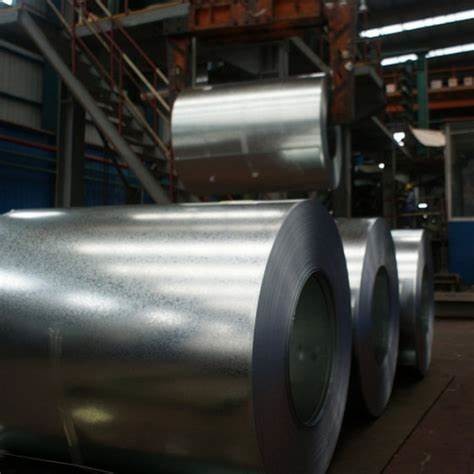

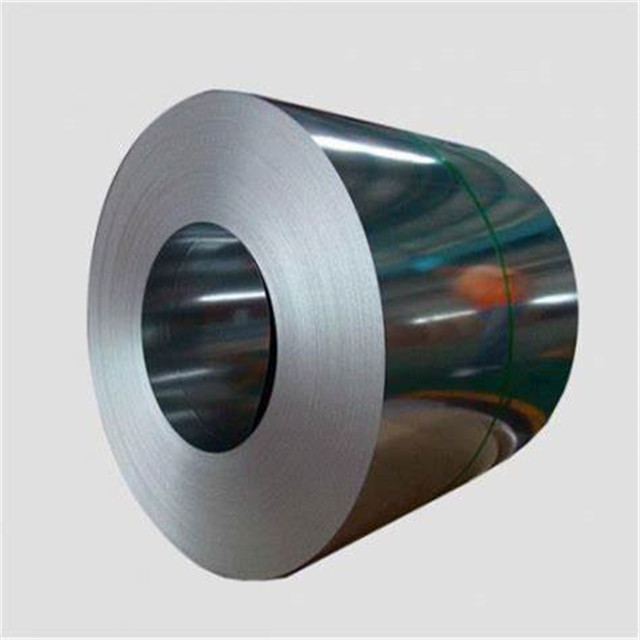

JISG 3302 Steel Gi Sheet Coil Container Plate Galvanized Metal Roll Carbon
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO |
| Certification | ISO,SGS |
| Model Number | G550 G450 Dx51d |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hot Dipped Zinc Coated Galvanized Steel Coil | Standard | ASTM, JIS, GB, AISI, DIN, BS |
|---|---|---|---|
| Grade | G550 G450 Dx51d | Thickness | 0.12-4mm |
| Width | 600-1500mm | Zinc Coating | 30-400GSM, As Your Request |
| Tolerance | ±1 | Application | Roofing, Exterior And Interior Wall |
| High Light | Galvanized Metal Gi Sheet Coil,JISG 3302 Gi Sheet Coil,4mm Metal Gi Sheet Coil |
||
Product Description
DX51D JIS 3302 Steel Gi Steel Coil Container Plate 4mm Galvanized Sheet Metal Roll Carbon Gi Sheet Coil
What is JIS g3302?
JIS G 3302 is a Japanese material standard for hot dip galvanized steels. The commercial quality hot dip galvanized steel is a type of steel that can be made after galvanizing a coil of SPCC cold rolled material. The Zinc coating thickness is based on the thickness and width and is governed by JIS G 3302.
What are the advantages of galvanized steel?
10 REAL BENEFITS OF GALVANIZED STEEL
Lowest first cost. Galvanizing is lower in first cost than many other commonly specified protective coatings for steel. ...
Less maintenance/Lowest long term cost. ...
Long life. ...
Reliability. ...
Toughest coating. ...
Automatic protection for damaged areas. ...
Complete protection. ...
Ease of inspection.
Product description
|
Name
|
Gi Coils Hot Dipped SGCC Dx51d Metal Zinc Galvanised Sheet Roofing Materials 275GSM 2mm Thick Z150 Z120 Z80 Regular Spangle Zinc Coated Galvanized Steel Coil
|
|
Grade
|
DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z
|
|
Width
|
600-1500mm
|
|
Thickness
|
0.12-4mm
|
|
Zinc coating
|
30-400g/m2
|
|
Surface treatment
|
chromated / oiled/slightly oiled/ dry
|
|
Hardness
|
soft, full hard, half hard
|
|
Spangle
|
zero spangle / minimized spangle / regular spangle/ big spangle
|
|
ID coil
|
508mm or 610mm
|
|
Coil weight
|
2-8 MT per coil. According to the customer's requirements
|
|
Package:
|
Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
|
|
Application:
|
Industrial panels, roofing and siding for painting
|
|
Chemical Composition
|
||||||
|
GRADE
|
C
|
Si
|
Mn
|
P
|
S
|
Ti
|
|
SGCC/DX51D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
DX52D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
SGCD/DX53D+Z
|
≤0.10
|
≤0.30
|
≤0.50
|
≤0.05
|
≤0.030
|
≤0.020
|
|
SGCE/DX54D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
DX56D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
Structural
|
≤0.20
|
≤0.60
|
≤1.70
|
≤0.10
|
≤0.045
|
|
|
Mechanical Properties
|
||||||
|
GRADE
|
Yield Strength MPa
|
Tensile Strength MPa
|
Elongation %
|
|||
|
SGCC(DX51D+Z)
|
≥205
|
≥270
|
-
|
|||
|
SGCD(DX53D+Z)
|
-
|
≥270
|
38
|
|||
|
SGCE(DX54D+Z)
|
-
|
≥270
|
40
|
|||
|
DX56D+Z
|
-
|
≥270
|
42
|
|||
FAQ
Q1: Are you a factory or trading company?
A1: We are a Chinese manufacture of steel pipes with both factories and trading companies.
Q2.How can you ensure the quality of your product?
A2.All products have to go through three checks in the whole manufacturing process,it includes production,cutting sheets and the packing.
Q3.What is your delivery time and the supply ability?
A3.The delivery time normally within 15~20working days,we can supply about 15,000tons every month.
Q4.What kind of equipment in your factory?
A4.Our factory have advanced five-eighth roller rolling,cold rolling production equipment on the roll,advanced processing and testing equipment,which makes our product better quality with efficiency.
Q5.About the complaint,quality problem,etc aftersales service,how do you handle it?
A5.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
