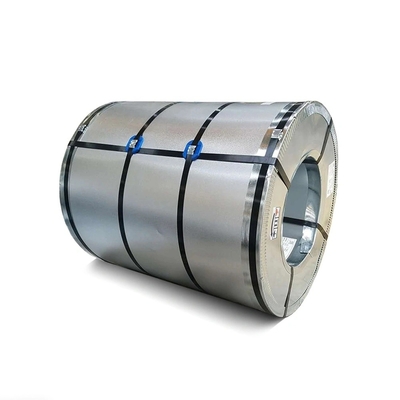

Cold Rolled Galvanized Steel Coils Dx51d Z30-275g 0.12 - 4mm For Roofing Sheet
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO |
| Certification | ISO,SGS |
| Model Number | G550 G450 Dx51d |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hot Dipped Galvanized Steel Coil | Standard | ASTM, JIS, GB, AISI, DIN, BS |
|---|---|---|---|
| Grade | Dx51d | Thickness | 0.12-4mm |
| Width | 600-1500mm | Zinc Coating | 30-400GSM, As Your Request |
| Tolerance | ±1 | Application | Roofing, Exterior And Interior Wall |
| High Light | Cold Rolled Galvanized Steel Coils,4mm Galvanized Steel Coils,Z30-275g Galvanized Steel Coils |
||
Product Description
High Quality Dx51d Z30-275g Cold Rolled Galvanized Steel Coils for Roofing Sheet
Is cold rolled steel stronger than galvanized steel?
Cold-rolled steel has superior directional strength, which is valuable for certain high-load applications.
What is the difference between GI and hot-dip galvanized?
The key difference between galvanized and hot dip galvanized is that most galvanized materials have a smooth
and sharp finishing, whereas hot sip galvanized structures have a rough finishing. Galvanization is a process
of preventing metal surfaces from corrosion.
Which is better galvanized or hot dipped galvanized?
As mentioned, pre-galvanized components are usually only immersed in the galvanizing bath for a very short time, resulting in a relatively thin coating. The thicker zinc coating produced by hot dip galvanization offers improved rust and corrosion protection versus pre-galvanization.
Product description
|
Name
|
Gi Coils Hot Dipped SGCC Dx51d Metal Zinc Galvanised Sheet Roofing Materials 275GSM 2mm Thick Z150 Z120 Z80 Regular Spangle Zinc Coated Galvanized Steel Coil
|
|
Grade
|
DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z
|
|
Width
|
600-1500mm
|
|
Thickness
|
0.12-4mm
|
|
Zinc coating
|
30-400g/m2
|
|
Surface treatment
|
chromated / oiled/slightly oiled/ dry
|
|
Hardness
|
soft, full hard, half hard
|
|
Spangle
|
zero spangle / minimized spangle / regular spangle/ big spangle
|
|
ID coil
|
508mm or 610mm
|
|
Coil weight
|
2-8 MT per coil. According to the customer's requirements
|
|
Package:
|
Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
|
|
Application:
|
Industrial panels, roofing and siding for painting
|
|
Chemical Composition
|
||||||
|
GRADE
|
C
|
Si
|
Mn
|
P
|
S
|
Ti
|
|
SGCC/DX51D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
DX52D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
SGCD/DX53D+Z
|
≤0.10
|
≤0.30
|
≤0.50
|
≤0.05
|
≤0.030
|
≤0.020
|
|
SGCE/DX54D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
DX56D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
Structural
|
≤0.20
|
≤0.60
|
≤1.70
|
≤0.10
|
≤0.045
|
|
|
Mechanical Properties
|
||||||
|
GRADE
|
Yield Strength MPa
|
Tensile Strength MPa
|
Elongation %
|
|||
|
SGCC(DX51D+Z)
|
≥205
|
≥270
|
-
|
|||
|
SGCD(DX53D+Z)
|
-
|
≥270
|
38
|
|||
|
SGCE(DX54D+Z)
|
-
|
≥270
|
40
|
|||
|
DX56D+Z
|
-
|
≥270
|
42
|
|||
