Cold Rolled Galvanized Steel Coil Sheet SGCC 24 Gauge Thick Hot Dipped
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO |
| Certification | ISO,SGS |
| Model Number | DX51D, DX52D, DX53D, DX54D |
| Minimum Order Quantity | 3 tons |
| Price | negotiable |
| Packaging Details | Standard export packing (waterproof paper + steel rings), or as your requirement |
| Delivery Time | ship within 10 days after received the advance |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Galvanized Steel Coil | Standard | ASTM, JIS, GB, AISI, DIN, BS |
|---|---|---|---|
| Grade | Dx51d | Thickness | 0.12-4mm |
| Width | 600-1500mm | Zinc Coating | 30-275g/m2 |
| Application | Construction, Light Industry, Automobile, Agriculture, Animal Husbandry, Fishery And Commercial Industries | ||
| High Light | Cold Rolled Galvanized Steel Coil Sheet,24 Gauge Galvanized Steel Coil Sheet,0.12mm Galvanized Steel Coil Sheet |
||
Product Description

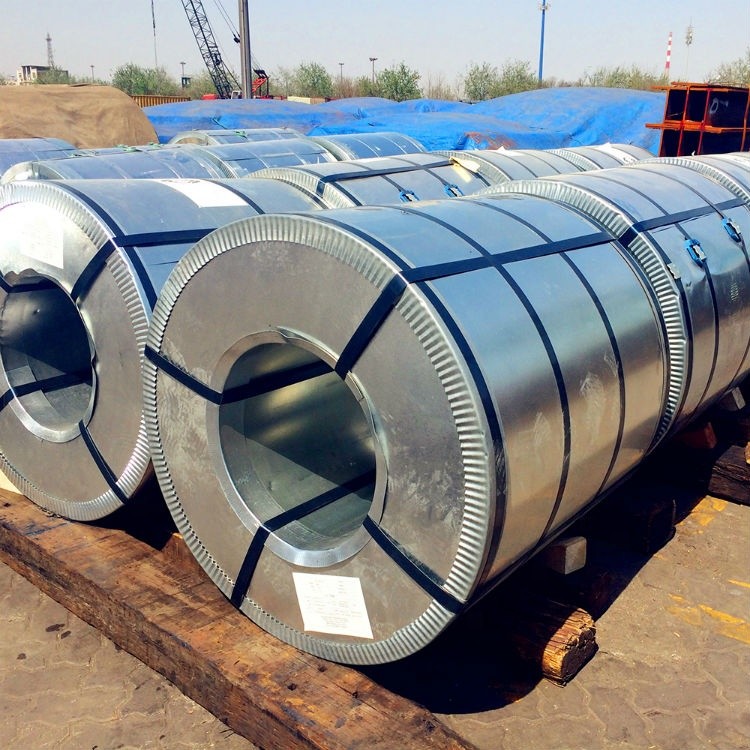

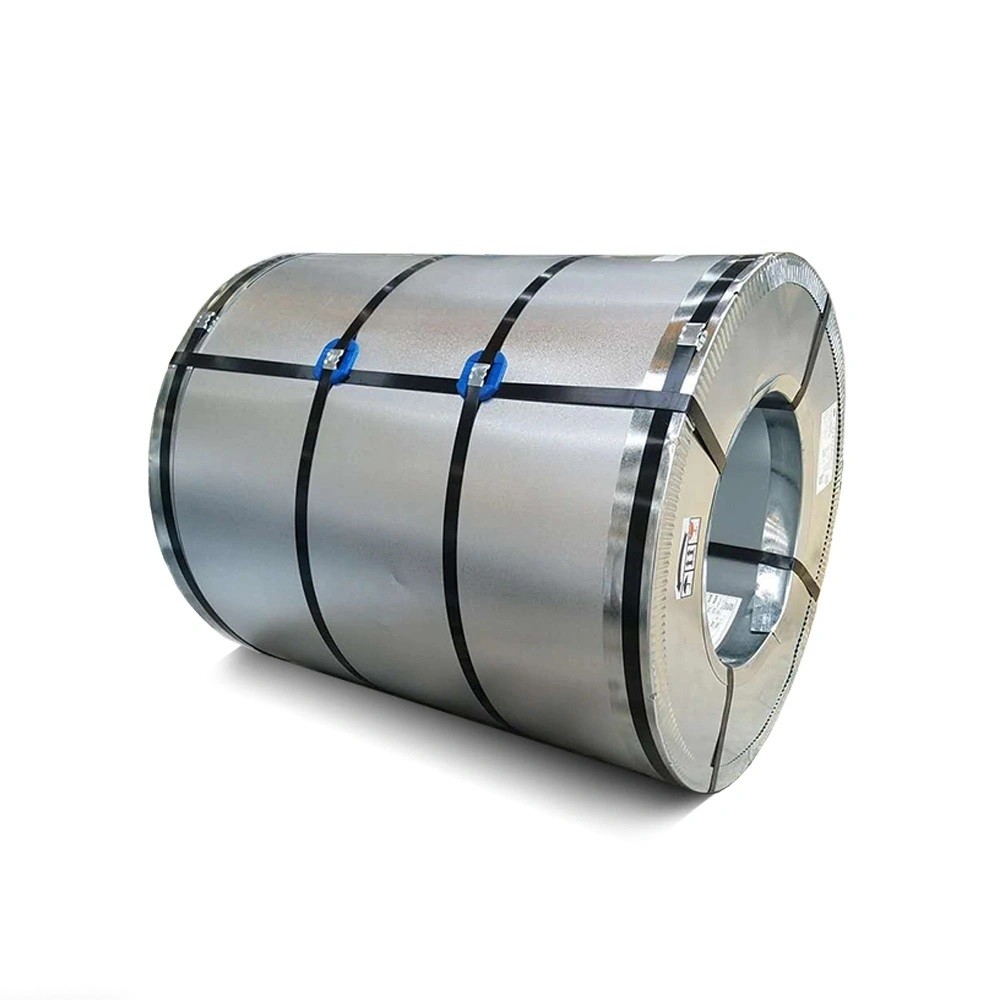

SGCC 24 Gauge Thick Hot Dipped Cold Rolled Galvanized Steel Coil Sheet
What is GI Coil?
GI is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc's characteristics
What is the difference between GI and PPGI?
Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.
Product description
|
Grade
|
DX51D, DX52D, DX53D, DX54D
S220GD, S250GD, S280GD, S350GD, S350GD, S550GD SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570 SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550)
|
|
Width
|
600-1200mm or as required
|
|
Thickness
|
0.12-4mm
|
|
Zinc coating
|
30-275g/m2
|
|
Surface treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Hardness
|
Soft hard(HRB60), Medium hard(HRB60-85), Full hard(HRB85-95)
|
|
Spangle
|
zero spangle / minimized spangle / regular spangle/ big spangle
|
|
ID coil
|
508mm or 610mm
|
|
Coil weight
|
2-8 MT per coil. According to the customer's requirements
|
|
Package:
|
Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
|
|
Application:
|
Construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries
|
|
Chemical Composition
|
||||||
|
GRADE
|
C
|
Si
|
Mn
|
P
|
S
|
Ti
|
|
SGCC/DX51D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
DX52D+Z
|
≤0.10
|
≤0.50
|
≤0.60
|
≤0.10
|
≤0.030
|
≤0.020
|
|
SGCD/DX53D+Z
|
≤0.10
|
≤0.30
|
≤0.50
|
≤0.05
|
≤0.030
|
≤0.020
|
|
SGCE/DX54D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
DX56D+Z
|
≤0.10
|
≤0.30
|
≤0.30
|
≤0.03
|
≤0.020
|
≤0.020
|
|
Structural
|
≤0.20
|
≤0.60
|
≤1.70
|
≤0.10
|
≤0.045
|
|
|
Mechanical Properties
|
||||||
|
GRADE
|
Yield Strength MPa
|
Tensile Strength MPa
|
Elongation %
|
|||
|
SGCC(DX51D+Z)
|
≥205
|
≥270
|
-
|
|||
|
SGCD(DX53D+Z)
|
-
|
≥270
|
38
|
|||
|
SGCE(DX54D+Z)
|
-
|
≥270
|
40
|
|||
|
DX56D+Z
|
-
|
≥270
|
42
|
|||
